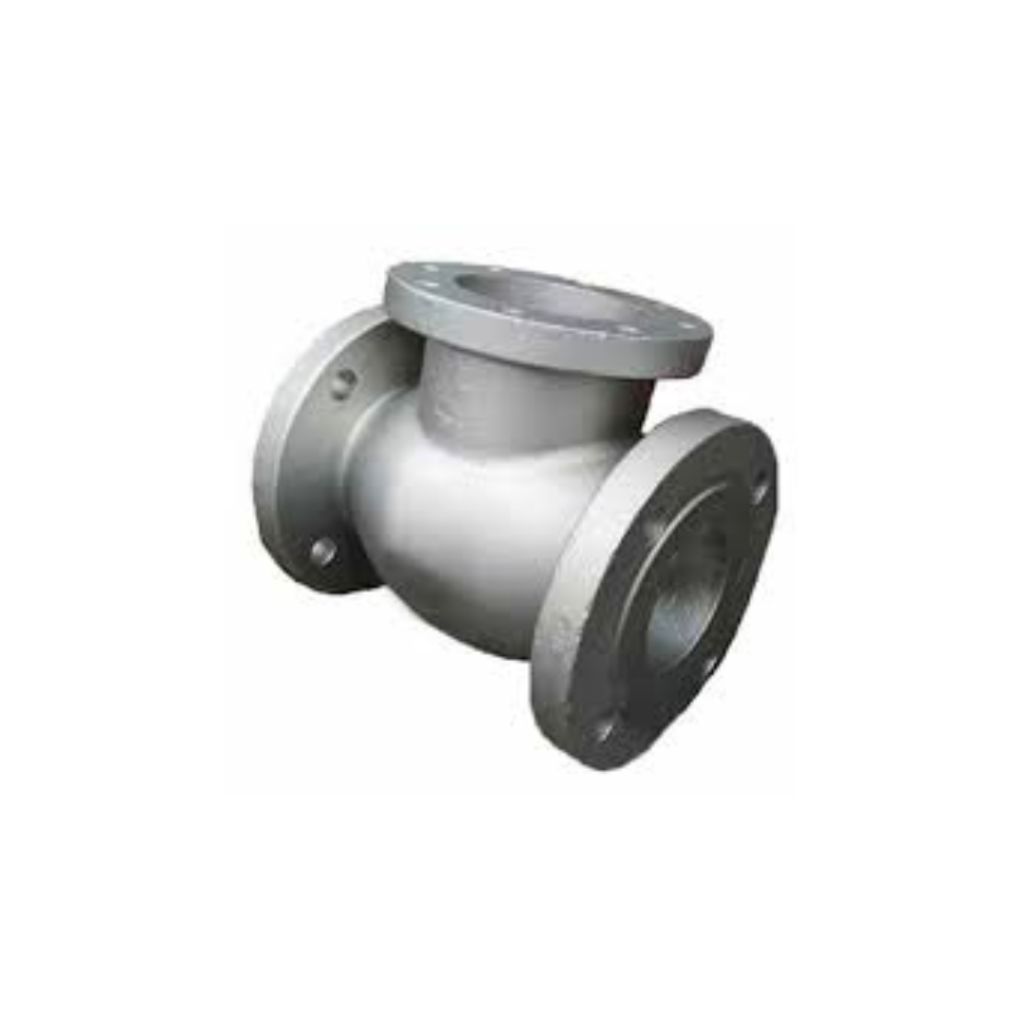

Check Valve Body
What is a Check Valve Body?
A valve system relies on the check valve body to direct fluid flow in just one direction. It works with the internal system to prevent liquids or gases from going backwards. These are fitted in pipelines, industrial sites, and in various kinds of fluid-handling devices.
Check Valve Body Types
Manufacturers design check valve body types to match the needs and applications for controlling flow.
The flap rotates open when fluid flows through and closes when no fluid or the wrong kind of fluid moves through it.
When pressure is put on the disc backwards, the disc is lifted vertically off its place and returns to its place when the pressure stops.
Has a ball that moves on the seat during water flow and stops other water from entering.
The check valves include spring-loaded plates that come apart when water passes forward, and they close once the water flow is reversed.
A model made to take up minimal space and close fast.
Features of Check Valve Body
The design of check valve bodies ensures they are both safe, efficient, and durable.
Put together using materials that won’t rust or corrode even when they come in contact with chemicals.
A straightforward design means those roofs do not need to be maintained often.
Stops water flowing backwards and improves the security of the system from the water hammer.
It is easy for this product to pass through narrow parts of piping systems.
The pipe can work properly in different pressure situations thanks to strong construction.
Check Valve Body Specifications & Materials
The requirements for specifications are changed according to each industry’s needs.
Size Range
Their sizes range from ½ inch all the way to those used in industry.
Material Options
Fluids are mixed in tubes that may contain stainless steel, cast iron, ductile iron, carbon steel, and bronze based on their type and how much pressure is needed.
Connection Types
You can choose flanged, threaded, or welded types of pipe fittings.
Pressure Ratings
Made to accommodate both low-pressure and high-pressure systems.
Temperature Tolerance
This works well for applications requiring various operating temperatures due to the choice of material.
Leading Check Valve Body Manufacturer & Supplier
A reliable check valve body manufacturer pays close attention to ensuring quality and following industry rules. There are many different designs available from these manufacturers for different fluid control tasks.
A check valve body supplier makes sure their products are available, they are delivered quickly, and you receive helpful explanations. By collaborating with a reliable check valve body manufacturer, a check valve body supplier can regularly provide high-quality and lasting valve systems.
FAQs
A check valve helps fluid travel only in one way and prevents it from flowing in the reverse direction.
Its main purpose is to prevent backflow, which can damage equipment and disrupt fluid systems.
It works based on pressure differences. When forward pressure is higher, the valve opens; it closes when pressure reverses.
Major types include swing, lift, ball, dual plate, and wafer-type check valves.
The best type depends on the system. For compact and high-pressure use, dual plate or wafer types are often preferred.
